PLM之家-NX9.0 二次开发实例视频32 NXOpen C++创建拉伸特征
NXOpen C++创建拉伸特征
0 y" j4 j6 e7 A* X6 B; Y$ d

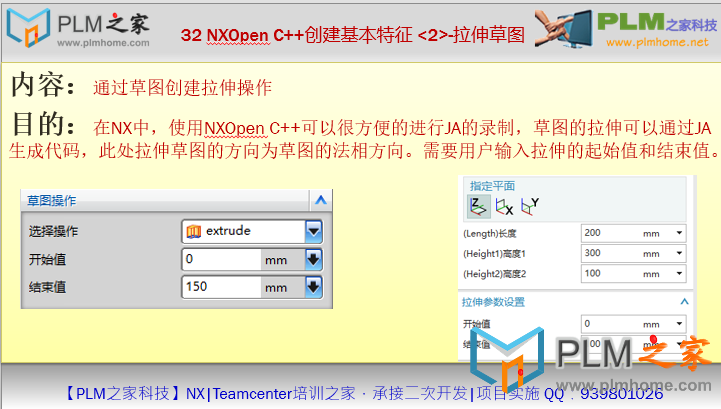

内容：9 q8 }* |1 J+ j+ t
通过草图创建拉伸操作
6 K# h; t0 m W- U. ~1 ^8 B, P目的：
/ k* a# T% e2 D. M在NX中，使用NXOpen C++可以很方便的进行JA的录制，草图的拉伸可以通过JA生成代码，此处拉伸草图的方向为草图的法相方向。需要用户输入拉伸的起始值和结束值。草图创建过程中主要是对section进行定义，在定义的时候需要考虑到选择意图selectionRule的定义。4 U$ ]' y, f( r0 |( T$ F# Q
1 w! ^. {6 F' u9 {' v4 a0 k8 p
. Z; J' k( a# x& s9 V8 m7 ~2 p) c
关键代码分享：' V; s; Z: _# _5 I1 l
$ k6 R3 d1 q; o6 H' s) k2 G6 ?- <font size="5">! b( X4 t6 T& ^% x
- </font>
" \+ H! S8 A! L# `( i9 a - <font size="5">void lesson32_createExtrude::createExtrude(SkeTCh *sketch): o4 u! B) ?3 N. y k4 u0 F! ^' I
- {
" v2 y0 ^/ v, [7 T
2 Z9 c# E1 W8 o5 k- Features::Feature *nullFeatures_Feature(NULL);
$ M q( g9 F% D; R+ f - Features::ExtrudeBuilder *extrudeBuilder1;
+ V% F: e% C& A* Y( R: T - extrudeBuilder1 = workPart->Features()->CreateExtrudeBuilder(nullFeatures_Feature);8 N, ~/ c+ b( C5 b7 \: o
- // set parameters
% X ^9 X( ?7 C% N9 e" H - 1 e* R6 W) n8 S9 e8 `! E/ [
- // create section Start
6 ?) A$ a: c2 Y5 |- Q - Section * section;6 d+ y1 H' g+ O+ `
- section = workPart->Sections()->CreateSection();' o9 j+ K, Z5 l- u6 g; R6 o9 [
- extrudeBuilder1->SetSection(section);6 n# @' X1 I; U5 i9 {
7 Q, e& S: j3 ?) V4 w2 {0 p- CurveFeatureRule *curveFeatureRule1;7 i% v3 I! `0 I2 z. `3 R6 f( r5 O: W0 l
- std::vector<Features::Feature *> Rulefeatures(1);. l! `2 n( Q) h* N* {& Y
- Rulefeatures[0] = sketch->Feature();4 Z8 c! @+ @. i$ T$ a9 ` t
- curveFeatureRule1 = workPart->ScRuleFactory()->CreateRuleCurveFeature(Rulefeatures);
9 V, i) c; [4 s+ R; ?( N7 c j5 E - 6 M9 s* H6 J: b8 w% `* q! c5 F
- std::vector<SelectionIntentRule *> rules(1);
$ q; R: }, a- t& U: u& U7 t - rules[0] = curveFeatureRule1;
6 u! Q3 X- E+ T, s
2 f; l6 Q* D9 Y, r0 E$ b- NXObject *nullNXObject(NULL);
- R( K! j4 y( j3 `7 n
z% i! }1 ?- e3 K- Point3d helpPoint1(0, 0, 0);
9 g" v# v. o" ~3 l - ( G4 a9 [. F( R
- section->AddToSection(rules, nullNXObject, nullNXObject, nullNXObject, helpPoint1, Section::ModeCreate, false);$ v, G. G2 a& g: ^
- ( H$ x% B0 l2 n( x! o( Q1 `% }
- " c- h; |) W7 Q! d" E5 y
- // create section End/ c5 b0 W& a/ x
5 q9 [! J. _$ p- E6 J2 d- Direction *direction;
$ Y u/ c' U/ L - direction = workPart->Directions()->CreateDirection(sketch,SenseForward,SmartObject::UpdateOptionWithinModeling);
6 G4 i" A# F) j K - extrudeBuilder1->SetDirection(direction);
2 G4 Y" t/ H8 Y- w, @7 H: x" n% ~ - " q% x4 c. L7 L' {0 n* r' g" S
: z* M0 ~! M1 a2 }+ Q/ P8 @/ X- // get the UI value
) U+ n# e" v+ g8 o& K3 x( D/ W - # b a$ X( a( Y0 g! r
- double startValue = this->expExtrudeStart->GetProperties()->GetDouble("Value");% ?/ r) ~9 k5 r: n2 @8 g' z
- double endValue = this->expExtrudeEnd->GetProperties()->GetDouble("Value");: V8 ~3 G( j3 `2 }
- stringstream s_startValue,s_endValue;: W4 b s# f" Y: ^
- s_startValue <<startValue;
3 n5 w6 Z a1 m9 g2 r. D& n; y - s_endValue <<endValue;
. E) B4 K A' ^/ f& Z -
b! n3 T+ }/ p4 s- J6 x0 O! _ - extrudeBuilder1->Limits()->StartExtend()->SetValue(s_startValue.str());
6 _% p+ _8 `) ^+ V1 T; c" Z1 e - extrudeBuilder1->Limits()->EndExtend()->SetValue(s_endValue.str());
* J; x* R$ f6 L' b @2 P# y, }4 T- ]
8 A) C) A" g$ N4 z! o$ Q- // commit feature6 P, p% t) E3 ?
- extrudeBuilder1->CommitFeature();6 v4 `6 T* E# x0 B; x# c
- extrudeBuilder1->Destroy();; D1 P5 J2 A2 p9 k
- 1 ^+ e9 a$ t: p! v: n1 i
- }</font>
